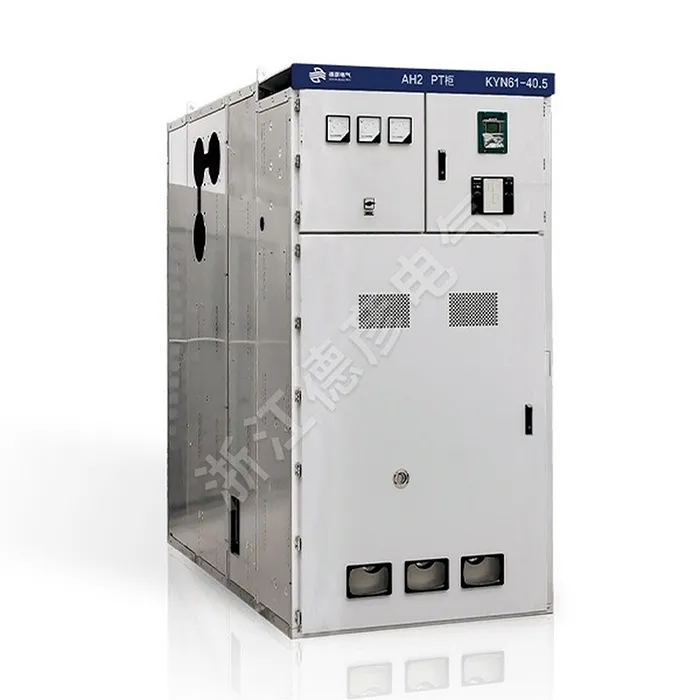

AC Metal-Clad Withdrawable Switchgear

Deyan Electric is a professional industrial electrical supplier with integrated R&D, production and service. This AC Metal-Clad Withdrawable Switchgear ensures maximum safety and reliability for medium-voltage power distribution. Its modular, withdrawable design allows for easy maintenance and testing of circuit breakers without de-energizing the entire system. Ideal for demanding industrial and utility applications, it provides superior personnel protection and operational continuity.

Send Inquiry

Product Description

The AC Metal-Clad Withdrawable Switchgear (hereinafter referred to as switchgear) is a three-phase AC 50Hz, rated voltage 40.5kV indoor complete distribution unit. It is designed for receiving and distributing electrical power in power plants, substations, and industrial and mining enterprises.The AC Metal-Clad Withdrawable Switchgear performs functions such as circuit control, protection, and monitoring, and is also suitable for locations requiring frequent operation. The AC Metal-Clad Withdrawable Switchgear complies with standards including GB/T11022-1999, GB3906-1991, and DL404-1997.

Product Parameter ( Specification )

Name	Unit	numerical value
Rated voltage	kV	40.5
Rated current	A	1250 1600 2000
Rated frequency	Hz	50
Rated Short-Time Withstand Current	KA	20 25 31.5
Rated Peak Withstand Current	KA	50 63 80
Rated Power Frequency Withstand Voltage	KV	95/1min
Rated Lightning Impulse Withstand Voltage	KV	185
Rated Short-Circuit Duration	S	4
Protection Rating		IP3X

Vacuum Circuit Breaker Key Technical Parameters

Name	Unit	numerical value
Rated voltage	KV	40.5
Rated frequency	HZ	50
Rated Power Frequency Withstand Voltage	KV	95/1min
Rated Lightning Impulse Withstand Voltage	KV	185
Rated current	A	1250 1600 2000
Rated Short-Time Withstand Current	KA	20 25 31.5
Rated Short-Time Breaking Current	KA	20 25 31.5
Rated Peak Withstand Current	KA	50 63 80
Rated Short-Circuit Duration	ms	4
Opening time	ms	30 ≤ t≤ 60
Closing time	s	50 ≤ t≤ 100
Rated Short-Circuit Breaking Current Cycles	Second	20
Mechanical life	Second	10000
Protection Rating		IP43

Product Feature And Application

Full Armored Protection

Withdrawable Components

Compartmentalized Design

Enhanced Safety Interlocks

High Reliability & Flexibility

Application Sites

◇ Compact secondary substations

◇ Small industrial and mining enterprises

◇ Wind power plants

◇ Hotels, shopping malls, office buildings, commercial centers, etc.

◇ C- Load switch unit

◇ D-Direct cable connection unit

◇ De- Direct cable connection unit with grounding switch

◇ F- Load switch-fuse combination unit

◇ V- Vacuum circuit breaker unit
