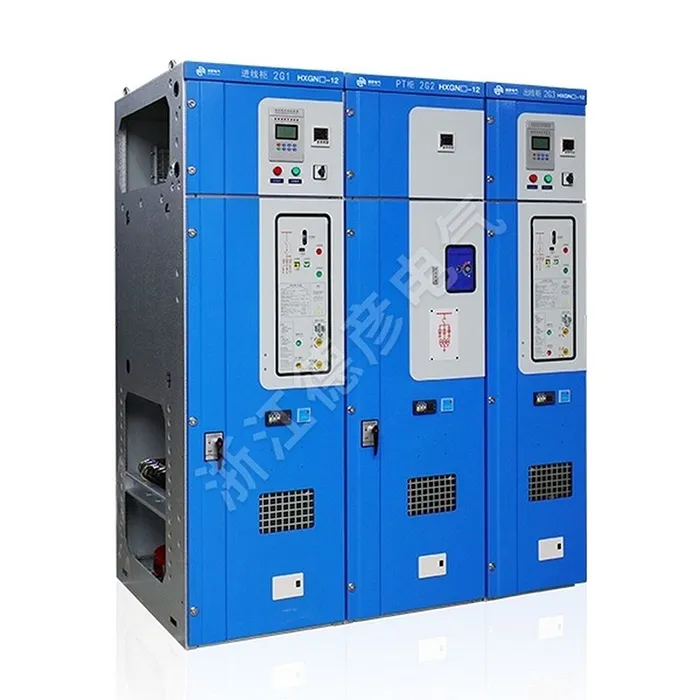

Air-Insulated Compact Switchgear

Deyan Electric is a professional industrial electrical supplier with integrated R&D, production and service. The core switching component of the AIR-Insulated Compact Switchgear typically employs a highly reliable SF6 gas or vacuum load-break switch, which provides strong load-current switching performance and dependable short-circuit making capacity. The enclosure of the AIR-Insulated Compact Switchgear is constructed from high-quality steel plates, formed using computer-controlled (CNC) processes, ensuring robust mechanical strength and corrosion resistance. A key design feature is its exceptional compactness. Through an optimized three-dimensional layout, it integrates multiple functional compartments—including the busbar, switch, cable, and instrument/operating mechanism chambers—within a minimal spatial footprint. These compartments are segregated by solid earthed metal partitions, a critical safety feature that ensures operational integrity and prevents the propagation of internal faults.

Send Inquiry

Product Description

The AIR-Insulated Compact Switchgear Compact Switchgear, developed by our company in response to power users' demands for reliability, safety, and compactness in electrical equipment, features air insulation, compact design, full intellectual property rights, and comprehensive type testing. Suitable for 10kV/7.2kV electrical systems in public buildings, commercial residential structures, industrial and mining manufacturing sectors.The AIR-Insulated Compact Switchgear also ideal for high-voltage motor-driven complete mechanical equipment requiring compact solutions.

Product Parameter ( Specification )

Serial Number	Project	Unit	Load Switching Cabinet	Combination Electrical Cabinet	Circuit Breaker Cabinet
01	Rated voltage	kv	12	12	12
02	Rated frequency	HZ	50/60	50/60	50/60
03	Rated current	A
04	Main Bus	A	630	630	630
05	Branch Main Bus	A	630	125 (depending on the rated current of the fuse)	630
06	Rated Insulation Level	kV
07	Power Frequency Withstand Voltage (Phase-to-Phase and Phase-to-Ground)	Kv	42	42	42
08	Power Frequency Withstand Voltage (Between Breaks)	Kv	48	48	48
09	Power Frequency Withstand Voltage (Control and Auxiliary Circuits)	Kv	2	2	2
10	Lightning impulse withstand voltage (phase-to-phase and phase-to-ground)	Kv	75	75	75
11	Lightning impulse withstand voltage (between ports)	Kv	85	85	85
12	Rated Short-Time Withstand Current (r.m.s)	kA
13	Main circuit	kA	20/3S	-	25/2S
14	Grounding circuit	kA	20/2S	-	25/2S
15	Rated Peak Withstand Current (peak)	kA	50	80	63
16	Rated Short-Circuit Closing Current (peak)	kA	50
17	Rated Short-Circuit Breaking Current	kA	-	31.5	25
18	Rated Transfer Current	kA	-	1700	-
19	Rated active load breaking current	A	630	-	-
20	Rated closed-loop breaking current	A	630	-	630
21	Rated Cable Charging and Breaking Current	A	10	-	15
22	Protection Rating	Second	IP3X	IP3X	IP3X
23	Mechanical life
24	Load switch		5000	5000	10000
25	Grounding Switch		2000	2000	2000

Product Feature And Application

1. Compact and Space-Saving Design

2. Use of Air as the Primary Insulation Medium

3. Cost-Effectiveness and Economic Advantage

4. Enhanced Safety with Robust Interlocking Systems

5. High Reliability and Ease of Maintenance

Application Sites

◇ Compact secondary substations

◇ Small industrial and mining enterprises

◇ Wind power plants

◇ Hotels, shopping malls, office buildings, commercial centers, etc.

◇ C- Load switch unit

◇ D-Direct cable connection unit

◇ De- Direct cable connection unit with grounding switch

◇ F- Load switch-fuse combination unit

◇ V- Vacuum circuit breaker unit

Air-Insulated Compact Switchgear
