AC Withdrawable Metal-Clad Switchgear

Deyan Electric is a professional industrial electrical supplier with integrated R&D, production and service. The AC Withdrawable Metal-Clad Switchgear switchgear provides enhanced safety and maintenance flexibility. Its withdrawable circuit breakers enable easy servicing without de-energizing the entire system, while the fully enclosed grounded metal construction ensures maximum operator protection and reliability in medium-voltage power distribution applications

Send Inquiry

Product Description

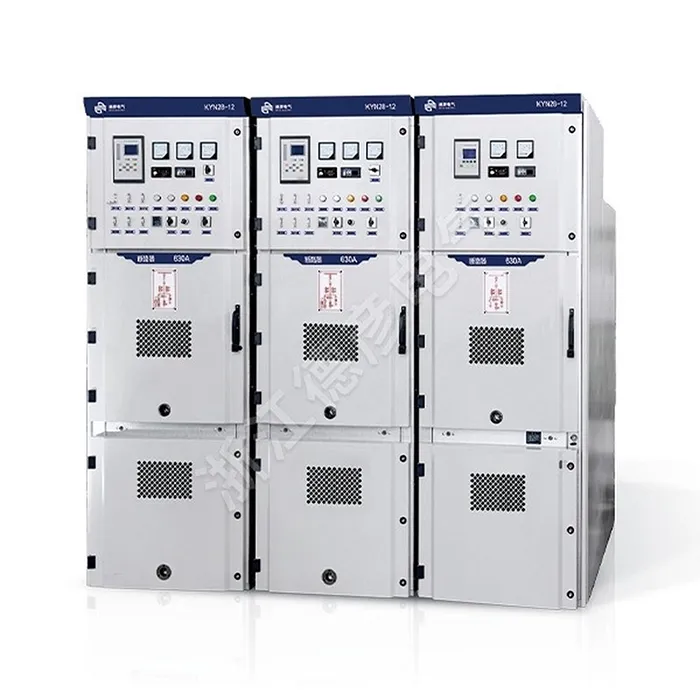

The AC Withdrawable Metal-Clad Switchgear,This equipment is suitable for three-phase AC power systems with a rated voltage of 12kV and a rated frequency of 50Hz. It is used to receive and distribute electrical energy while providing circuit control, protection, and monitoring.

TheAC Withdrawable Metal-Clad Switchgear is a medium-voltage solution (typically 5-15kV) designed for superior safety and reliability. Its key feature is the withdrawable vacuum circuit breaker, enabling easy maintenance without exposure to live parts. The metal-clad design provides full compartment segregation for enhanced protection. Ideal for utility and industrial power distribution systems.

Product Parameter ( Specification )

Project	Unit	numerical value
Rated Voltage	Kv	3.6、72、12
Rated frequency	Hz	50
Breaker rated current	A	630、1250、1600、2000、2500、3150
Switchgear Rated Current	A	630、1250、1600、2000、2500、3150
Rated Short-Time Withstand Current (4S)	KA	16、20、25、31.5、40、50
Rated Peak Withstand Current (Peak)	KA	40、50、63、80、100、125
Rated Short-Circuit Breaking Current	KA	16、20、25、31.5、40、50
Rated Short-Circuit Closing Current (Peak)	KA	40、50、63、80、100、125
Rated Insulation Level	KV	24、32、42
Rated Insulation Level	KV	40、60、75
Protection Rating		The enclosure is rated IP4X. When compartment doors or circuit breaker compartment doors are open, the rating is IP2X.

Product Feature And Application

Withdrawable Circuit Breaker Design

Robust Armored Construction

Enhanced Operational Safety

Flexible Configuration

Application Sites

◇ Compact secondary substations

◇ Small industrial and mining enterprises

◇ Wind power plants

◇ Hotels, shopping malls, office buildings, commercial centers, etc.

◇ C- Load switch unit

◇ D-Direct cable connection unit

◇ De- Direct cable connection unit with grounding switch

◇ F- Load switch-fuse combination unit

◇ V- Vacuum circuit breaker unit
