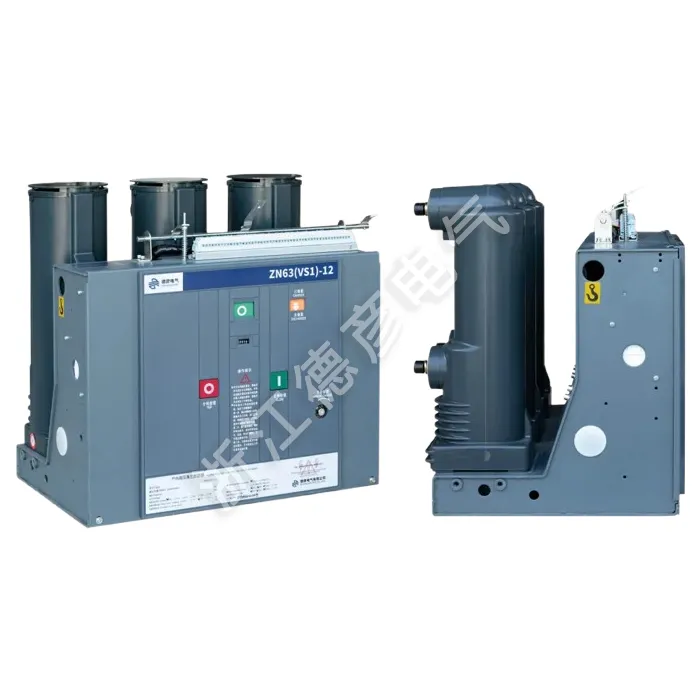

Indoor Vacuum Circuit Breaker with Handcart

Deyan Electric is a professional supplier with rich manufacturing experience in industrial electrical appliances, specializing in the R&D, production, sales, and service of industrial electrical appliances. Its main products include power equipment such as gas-insulated switchgear, ring main units, compact substations, and high/low-voltage switchgear.
The Indoor Vacuum Circuit Breaker with Handcart (draw-out) design for easy maintenance and testing. It provides reliable circuit protection with its vacuum interruption technology, compact structure, and flexible operation, making it ideal for power distribution systems and industrial applications.

Send Inquiry

Product Description

The indoor vacuum circuit breaker with handcart is a three-phase AC 50Hz indoor switchgear with a rated voltage of 12kV. It is suitable for control and protection applications in industrial plants, power plants, substations, and electrical facilities, and is ideal for locations requiring frequent operation. Featuring an integrated operating mechanism and breaker body.The indoor vacuum circuit breaker with handcarcan be designed as a fixed installation unit or equipped with a dedicated push-in mechanism to form a draw-out unit. The indoor vacuum circuit breaker with handcar main circuit section may incorporate fully encapsulated solid-insulated poles to achieve compact size, high reliability, and maintenance-free operation. It is compatible with draw-out switchgear cabinets such as KYN28-12(GZS), while the fixed-mount version can be integrated into XGN fixed switchgear cabinets.

Product Parameter ( Specification )

Serial Number	Name		Unit	Data
1	Rated voltage		kV	12
2	Maximum operating voltage		KV	12
3	Rated current		A	630 1250	630 1250 1600 2000 2500 3150		1250 1600 2000 2500 3150 4000
4	Rated Short-Circuit Breaking Current (Rated Thermal Stability Current - RMS)		KA	20/25	31.5		40
5	Rated Short-Circuit Closing Current (Peak)		KA	50/63	80		100
6	Rated Peak Withstand Current (Rated Dynamic Stability Current - Peak)		KA	50/63	80		100
7	4S Rated Short-Circuit Withstand Current		KA	20/25	31.5		20/25
8	Rated Insulation Level	Working Voltage Withstand (Before and After Rated Breaking)/1 min Power Frequency Voltage Withstand	KV	Ground 42 (Break 48)
		Withstand Voltage (Before and After Rated Breaking) / Peak Rated Lightning Impulse Withstand Voltage		Ground 75 (Break 85)
9	Rated Thermal Stability Time		S	4
10	Rated Operating Sequence			Separate -0.3S - Combined -180S - Combined
11	Mechanical life		Second	20000
12	Rated Short-Circuit Breaking Current Number of Breaks		Second	50
13	Operating Mechanism Rated Closing Voltage (DC)		v	AC、DC 110,220
14	Operating Mechanism Rated Opening Voltage (DC)		v	AC、DC 110,220
15	Contact gap		mm	11±1
16	Overstroke (contact spring compression length)		mm	3.5±0.5
17	Three-phase closing and opening bounce time		ms	≤2
18	Contact bounce time during closing		ms	≤2
19	Average tripping speed		m/s	0.9~1.2
	Average closing speed		m/s	0.5-~0.8
20	Opening time	At the maximum operating voltage	S	≤0.05
21		At minimum operating voltage		≤0.08
22	Closing time		S	0.1
23	Resistance of each phase main circuit		μΩ	630 ≤50		1250 ≤ 45
24	Allowable cumulative wear thickness for moving and stationary contacts		mm	3

Product Feature And Application

Handcart (Draw-out) Design

Advanced Vacuum Interruption

Enhanced Safety with Interlocks

Spring Operating Mechanism

Versatile Application

Application Range

◇ Compact secondary substations

◇ Small industrial and mining enterprises

◇ Wind power plants

◇ Hotels, shopping malls, office buildings, commercial centers, etc.

◇ C- Load switch unit

◇ D-Direct cable connection unit

◇ De- Direct cable connection unit with grounding switch

◇ F- Load switch-fuse combination unit

◇ V- Vacuum circuit breaker unit

Indoor Vacuum Circuit Breaker With Handcart
