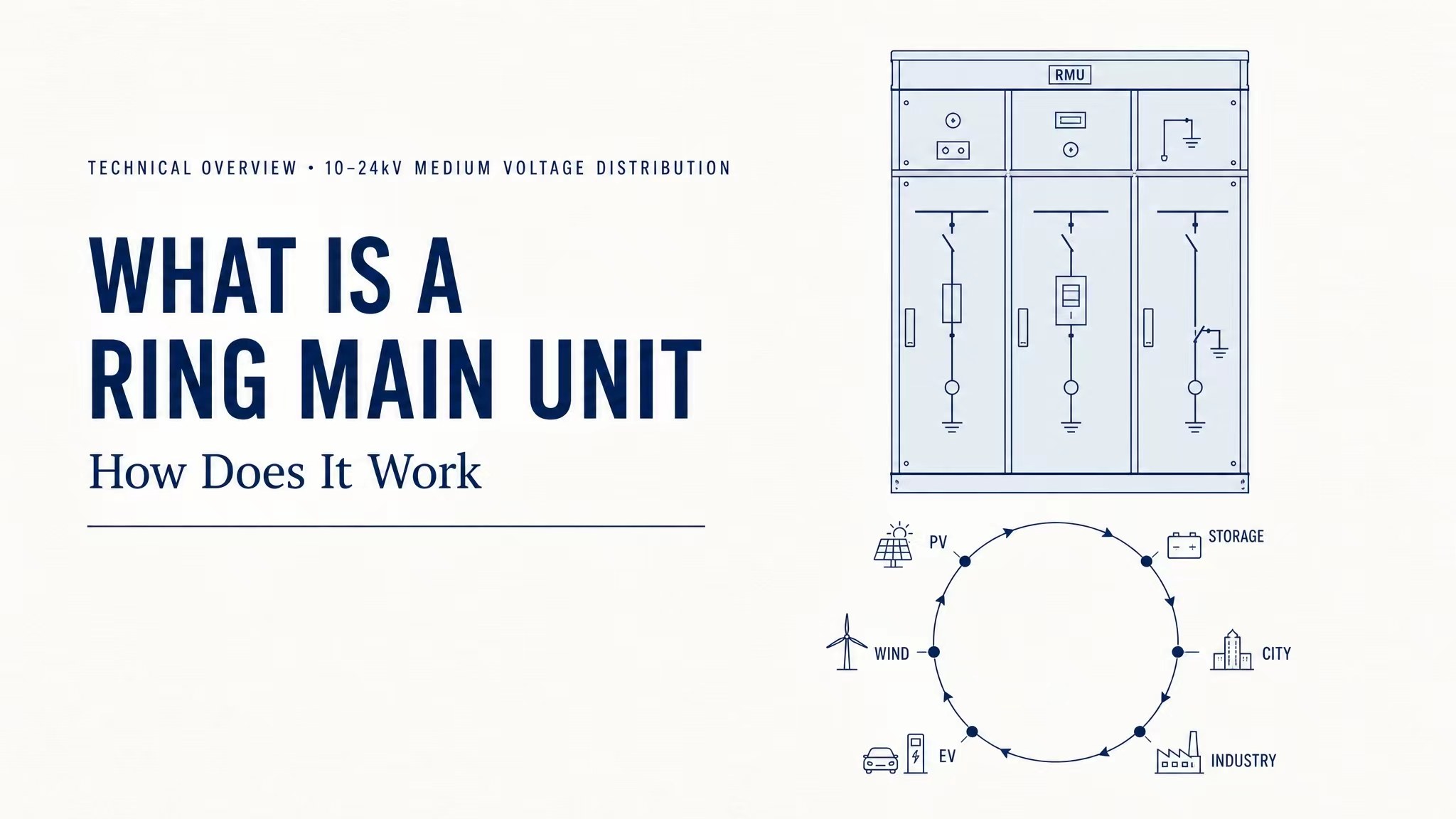

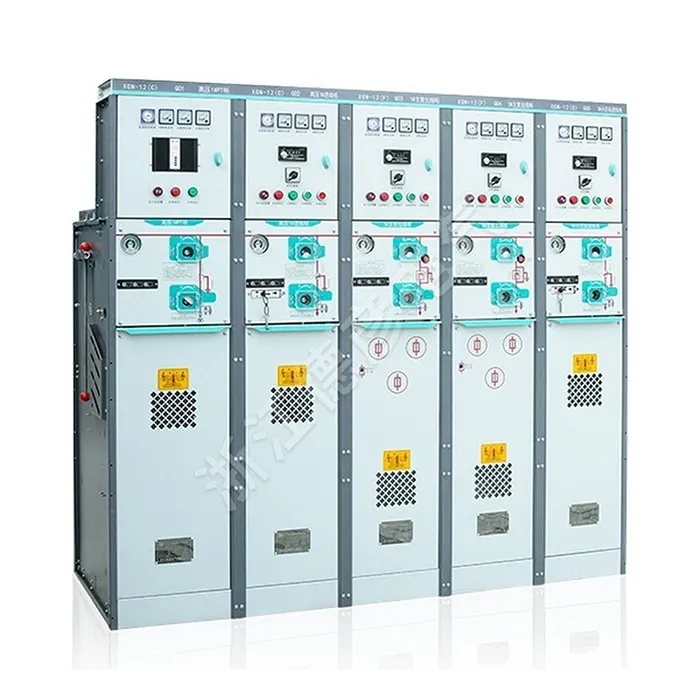

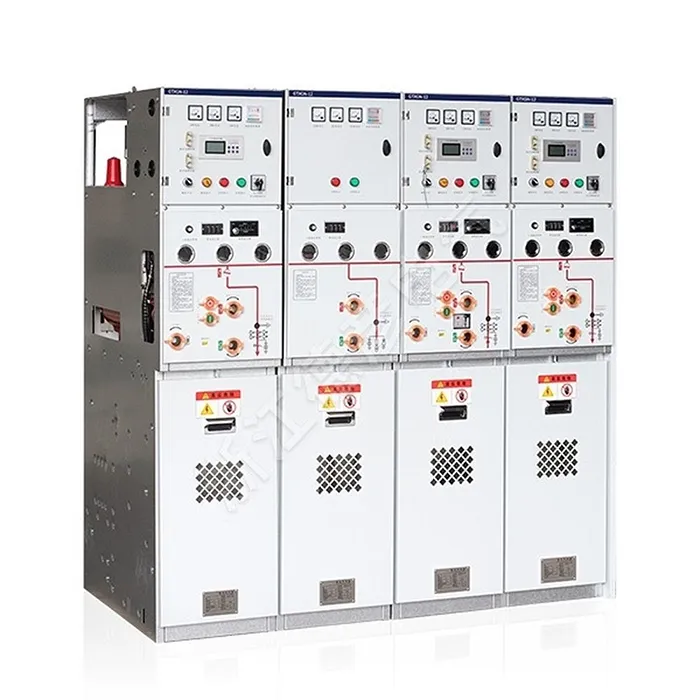

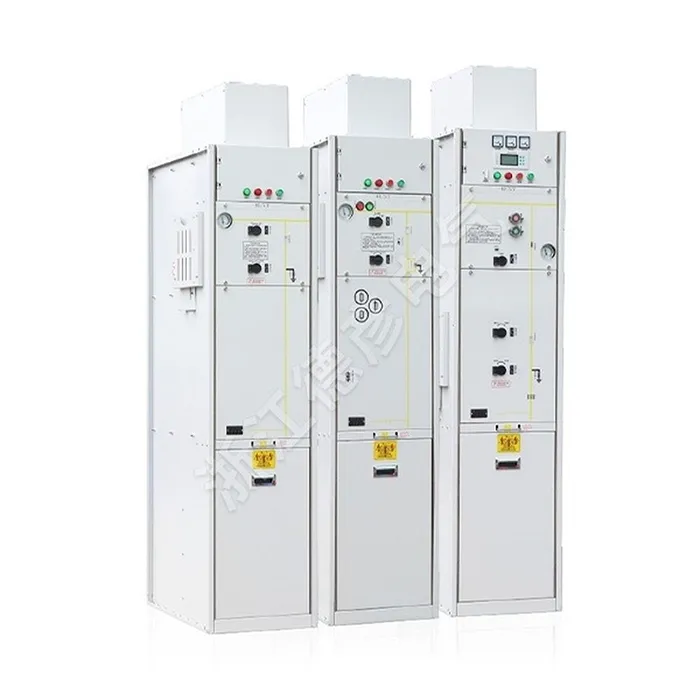

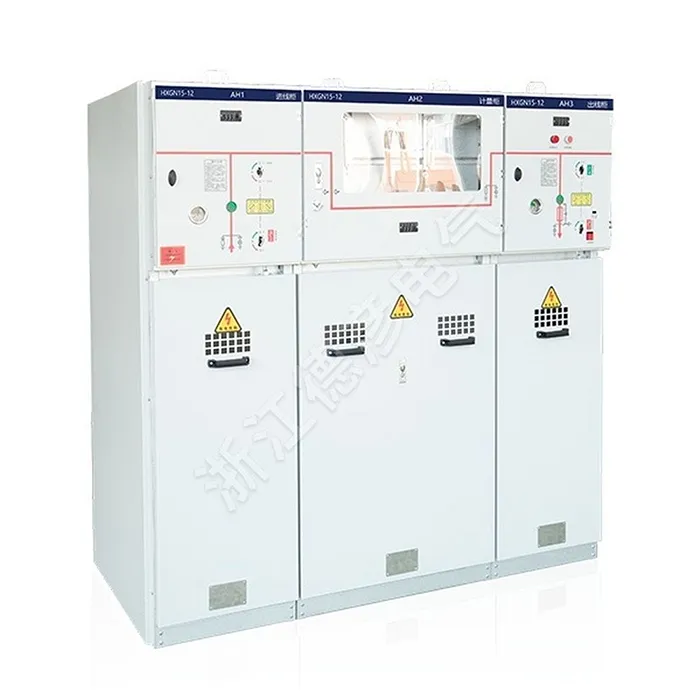

What Is a Ring‑Main‑Unit and How Does It Work

In urban cable pipeline renovation, supporting power distribution for new energy, and power supply projects for residential communities and industrial parks, Ring Main Units (RMUs) serve as the core switchgear in 10--24kV medium-voltage ring distribution networks. Thanks to their compact cabinet structure, reliable load switch assemblies and flexible ring power supply mode, RMUs have become mainstream equipment for outdoor power distribution, box substation matching and underground pipeline power distribution. This document provides a detailed introduction covering the basic working principles of the equipment, five core advantages, applicable sites, routine inspection and maintenance, as well as the technical trend of new eco-friendly gas-insulated RMUs in the industry, catering to common search keywords in the electrical sector.

I. Basic Working Principle

Ring power supply refers to forming a closed ring power supply loop by connecting multiple high-voltage cables end to end. Equipped with internal components including load switches, earthing switches and fuses, RMUs control the connection and disconnection of cable lines within the loop.

When short-circuit or cable damage occurs on one section of the ring network, the RMU can rapidly disconnect the faulty segment. Sound circuits can still transmit power bidirectionally, avoiding power outages across the whole area and greatly improving the power supply stability of urban distribution networks --- this is its core function that distinguishes it from ordinary high-voltage switch cabinets.

II. Five Core Product Features

1. Compact cabinet design to save installation space
With a modular integrated structure, its overall volume is far smaller than conventional high-voltage switch cabinets. It can be directly installed in road green belts, cable wells and cramped underground power distribution rooms, making it ideal for space-scarce outdoor power distribution points in cities.

2. Multiple optional insulating media with outstanding safety performance
The market offers various types, including SF6 gas-insulated, dry air eco-friendly gas-insulated, solid-insulated, and air-insulated products.The fully sealed cabinet structure is waterproof and dustproof with an IP67 protection grade, resisting erosion from rain, sand, moisture and coastal salt fog for round-the-clock outdoor operation.

3. Ring power supply with rapid fault isolation
It supports dual-power ring switching. Once a fault occurs on a single branch, the unit locks and isolates the fault instantly without disrupting power supply to other users, making it indispensable for power grid upgrading and renovation in old urban areas.

4. Simple structure with long-term maintenance-free performance
Internal components of gas-insulated RMUs are free from oxidation by ambient air, reducing daily inspection workload. Mechanical load switches boast high durability and can withstand frequent switching operations.

5. Support for intelligent upgrade via primary-secondary integration
New intelligent RMUs are fitted with sensor terminals to remotely monitor temperature, gas pressure and line fault signals. Compatible with smart grid back-end systems, they enable unattended operation and automatic fault alarms, aligning with the intelligent transformation trend of power distribution.

III. Main Application Scenarios

● Underground cable renovation in old urban districts and outdoor power distribution ring networks along municipal roads

● High-voltage power distribution units for residential quarters, commercial complexes and underground parking garages

● Incoming and outgoing switch cabinets inside box-type substations

● 10kV grid-connected power distribution for photovoltaic power stations and distributed energy storage projects

● Supporting power supply systems for industrial parks, industrial zones, mines and expressway infrastructure

● Outdoor ring power supply points in coastal streets, towns and rural areas; anti-corrosion cabinets adapt to harsh operating environments

IV. Standard Daily Maintenance Methods

1. Regularly inspect the cabinet exterior for dents, corrosion or aging/damaged sealing strips on cabinet doors; repair chipped paint to prevent rusting and water ingress.

2. Periodically check the gas chamber pressure of gas-insulated models and address low-pressure leakage alarms promptly.

3. Repeatedly test smooth switching performance of load switches and earthing switches, and clear accumulated dust and debris inside the cabinet.

4. Check the temperature of cable joints to eliminate hidden dangers such as loose and overheated wiring terminals.

5. Conduct regular insulation withstand voltage tests and verify the normal operation of intelligent monitoring terminals and fault indicators.

V. Industry Development Trend

Driven by the Dual Carbon policy, eco-friendly dry air-insulated RMUs are gaining widespread popularity. They replace traditional greenhouse gas sulfur hexafluoride with clean air as the insulating medium for superior environmental performance. Meanwhile, primary-secondary integration, miniaturization and intelligence have become mainstream industry directions, and RMUs continue to deliver reliable support for the construction of urban smart distribution networks.
