Product Description

LNC180 series Inverter for Fans and Pumps are special inverters for fans and pumps. They are mainly used to control and adjust the speed of three phase AC asynchronous motors. They adopt high - performance control technology, with high - torque output at low speeds, good dynamic performance and an ultra - strong overload capacity. They are mainly used for driving fans and pumps. This series is standard - equipped with a 485 communication function. Power range: 90kW-1000kW-380V.

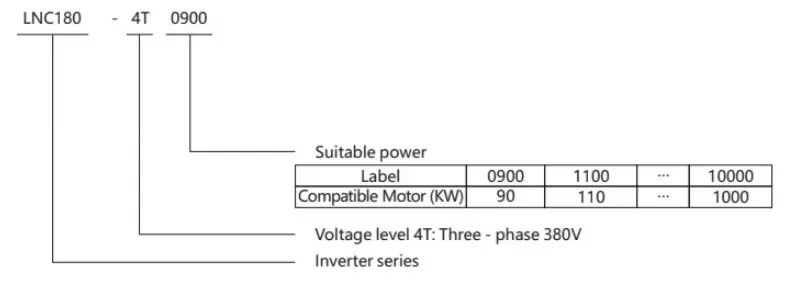

Model meaning

Lnc180 Inverter For Fans And Pumps

Nameplate instructions

MODEL:	LNC180-4T0900
POWER:	90KW
INPUT:	3PH AC380V 50HZ/60HZ
OUTPUT:	3PH ACOV-380V OHZ-400HZ
S.N:	Barcode

List of machine models

Inverter model	Input current(A)	Output current (A)	Applicable motor power(kW)
180-4T0900	190	180	90
180-4T1100	225	215	110
180-4T1320	265	260	132
180-4T1600	310	305	160
180-4T1850	345	340	185
180-4T2000	385	380	200
180-4T2200	430	425	220
180-4T2500	485	480	250
180-4T2800	545	530	280
180-4T3150	610	600	315
180-4T3500	625	650	350
180-4T4000	715	720	400
180-4T5000	890	860	500
180-4T5600	980	1060	560
180-4T6300	1050	1200	630
180-4T7000	1126	1300	700
180-4T8000	1460	1440	800
180-4T10000	1800	1920	1000

Technical specifications

Item		Specification
Control characteristics	Output frequency	0-400Hz
	Carrier frequency	1kHz~15kHz.The carrier frequency can be automatically adjusted according to the load characteristics
	Outpu frequency resolution	0.01Hz
	Control mode	V/F control
	Overload capacity	150%of the rated output current for one minute
	V/F curve	Four modes linear type;multi-point type;complete V/f separation;incomplete V/fseparation
	Acceleration and deceleration curve	Linear orS-curveacceleration and deceleration modes;four acceleration and deceleration times; the acceleration and deceleration time range is 0.1~6500.05
	Jog control	Jog frequency range:0.00Hz~maximum frequency,jog acceleration and deceleration time is 0.1s-6500.0s
	Simple PLC multi-speed operation	Upto 16-speed operation can be achieved through the built-in PLC or control terminals.
	Built-in PID	It caneasily realize a closed-loop control system for procss control.
	Automatic voltage regulation(AVR)	When the grid volitage changes,it can automatically maintain a constant output voltage.
Operating charactensirs	Operating command channel	Three channels:given by the operation panel,given by the control terminals,given by the serial communication portIt can be switched in various ways
	Frequency source	Ten frequency sources:given by panelknob,given by operation panel,given by analog voltage, given by analog current,given by RS485 communication,which can be switched in various ways
	Auxiliary frequency source	Ten auxiliary frequency sources.It can flexibly achieve auxiliary frequency fine-tuning and frequency synthesis
	Input terminals	Eight digital input terminals,one of which can be used as a high-speed pulse input. Two analog input channels,Al3:input range0~+10V,Al2:input range0~+10V/0-20mA
	Output terminals	1high -speed pulse output witha maximum frequency of 50kHz One digital output terminal One relay output terminal Two analog output terminals.OV~10V/0-20mA can indicate output frequency/current/ voltage/frequency command/speed/power factor signal output
	Protection function	Motor short-circuit detection upon power-on,input and output phase-loss protection, over-current protection,over-voltage protection,under-voltage protection, over-heat protection,overload protection,etc
Environment	Application place	Indoors,not directly exposed to sunlightfree from dust,corrosive gases,flammable gases,oi mist, water vapor,dripping water or salt,etc
	Altitude	Less than 1000m
	Ambient humidity	-10℃~+40℃(When the ambient temperature is between 40℃~50℃,derating operationis required)
	Humidity	Less than 95%RH,without water droplet condensation
	Vibration	Less than 5.9m/s²(0.6g)
	Storage temperature	-20℃~+60℃
