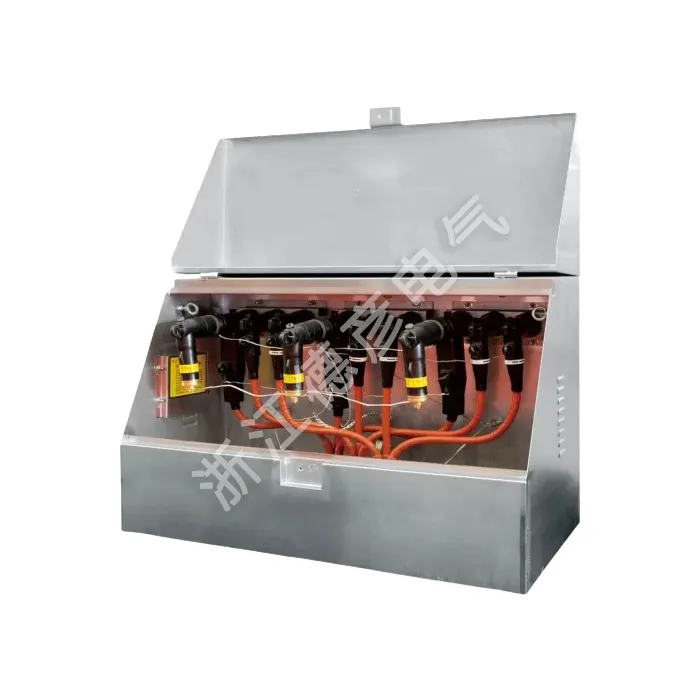

American Style Cable Distribution Equipment Junction Box

Deyan Electric, a leading China manufacturer and supplier of industrial electrical equipment, presents the American Style Cable Distribution Equipment Junction Box—a high-performance cable distribution solution purpose-built for medium-voltage power networks in North America and beyond. Engineered with a heavy-duty galvanized steel enclosure and horizontal multi-busbar configuration, this junction box delivers reliable cable termination, branching, and distribution across utility grids, industrial complexes, commercial centers, and renewable energy installations. Featuring a single-direction door design that allows tool-less access for inspection and maintenance, the unit combines operational convenience with robust protection against dust, flood, and corrosion. With a proven track record in urban infrastructure and heavy industrial applications, Deyan Electric combines innovative engineering with rigorous quality control to ensure every unit meets the highest standards of safety, durability, and operational efficiency.

Superior Construction

The American Style Cable Distribution Equipment Junction Box features a robust galvanized steel enclosure with a corrosion-resistant finish, specifically engineered to withstand the most challenging environmental conditions. The cold-rolled steel construction provides exceptional mechanical strength and impact resistance, making it ideal for outdoor installations in coastal areas, industrial zones, and regions with extreme weather patterns. The fully sealed and fully insulated design achieves IP67 protection class, ensuring complete protection against dust ingress and temporary water immersion. All high-voltage live parts are encapsulated in silicone rubber or EPDM prefabricated cable connectors, eliminating the need for insulation distance requirements. This maintenance-free unit eliminates the need for regular servicing, reducing operational downtime and total cost of ownership over its 5-10 year service life.

Technical Specifications

The American Style Cable Distribution Equipment Junction Box is available in two primary configurations to accommodate different network requirements:

The 600A main circuit employs a screw-in bolt connection for secure, permanent fastening; the 200A branch circuit utilizes a plug-in connection that supports hot-swapping under load—enabling maintenance and reconfiguration without service interruption. All cable joints conform to industry standards, ensuring compatibility with American-style cable connectors and accessories.

Application Scenarios

The American Style Cable Distribution Equipment Junction Box serves as essential infrastructure across a wide range of power distribution applications:

1. Utility Grid Networks – Cable termination and branching in urban and suburban power distribution systems, supporting ring network configurations and load management in North American power grids.

2. Industrial Complexes – Power distribution for manufacturing facilities, mining operations, oil fields, and large-scale industrial parks requiring reliable medium-voltage supply.

3. Commercial and Residential Developments – Underground and above-ground installation in residential communities, shopping centers, high-rise buildings, and commercial districts.

4. Renewable Energy Projects – Cable interconnection in wind power plants and solar farms, where harsh outdoor conditions demand durable, weather-resistant equipment.

5. Infrastructure Projects – Power distribution for highways, tunnels, airports, ports, and urban renewal projects where space efficiency and reliability are paramount.

The compact design with horizontal busbar configuration reduces equipment footprint by 30%-50% compared to traditional switchgear, making it particularly suitable for space-constrained urban substations and high-rise building distribution rooms.

Model Comparison

The following comparison illustrates the key differences between the two available configurations of the American Style Cable Distribution Equipment Junction Box, helping customers select the optimal solution for their specific network requirements:

Both models share the same robust galvanized steel construction, corrosion-resistant finish, and fully insulated/sealed design, ensuring consistent reliability across all applications.

Selection Guide

Choosing the right American Style Cable Distribution Equipment Junction Box for your project involves evaluating several key parameters. The following guide outlines critical factors to consider, ensuring optimal performance and cost-efficiency.

1. Rated Current Capacity

Determine the maximum load current of your circuit. The 200A branch model is designed for secondary distribution and load-side connections, while the 600A main-grid model handles primary feeder lines and heavy loads. For systems with future expansion, consider the 600A variant to avoid premature upgrades.

2. Voltage Level

Match the rated voltage to your network's nominal voltage. The 200A unit supports up to 15kV, suitable for most medium-voltage distribution. The 600A unit offers dual ratings (15/25kV), making it ideal for networks with higher insulation requirements or where voltage fluctuations occur.

3. Connection Type & Maintenance Needs

If your operation requires frequent circuit reconfiguration or live maintenance, the 200A plug-in connection enables hot-swapping without power interruption. For permanent, high-security connections where tampering is unlikely, the 600A screw-in bolt provides a rugged, vibration-proof joint.

4. Environmental Conditions

Both models feature galvanized steel and corrosion-resistant finishes, but for extreme coastal or high-humidity zones, optional enhanced coatings are available. The IP67 rating ensures dust-tight and waterproof performance for outdoor, underground, or flood-prone installations.

5. Space Constraints

The compact horizontal busbar design reduces footprint by 30%-50% versus conventional switchgear. Measure your substation or distribution room dimensions; the slim profile of the American Style Cable Distribution Equipment Junction Box allows installation in tight urban vaults or high-rise electrical closets.

6. Accessory Requirements

Both configurations can be equipped with lightning arresters, short-circuit indicators, ground-fault indicators, and cable test points. Assess your system protection needs and specify these options at the time of order for factory integration.

7. Future Scalability

If your network is expected to grow, the 600A model with higher withstand ratings offers greater headroom. Alternatively, the 200A plug-in design allows easy addition of branch circuits without major overhauls.

For tailored recommendations, Deyan Electric's engineering team provides free consultation based on your single-line diagram and load calculations—ensuring you select the most cost-effective and reliable junction box for your utility network.

Certified Quality and Safety

Every American Style Cable Distribution Equipment Junction Box undergoes rigorous testing to ensure compliance with international safety and performance standards. The fully insulated, fully sealed design provides reliable personal safety protection with no exposed live parts. Key quality features include:

Corrosion and Flood Resistance: Suitable for both above-ground and underground installation in all types of harsh environments.

Maintenance-Free Operation: Sealed construction eliminates the need for routine maintenance, reducing operational costs and minimizing power outage risks.

Flexible Configuration Options: Available with or without lightning arresters, short circuit indicators, and ground fault indicators to meet specific project requirements.

Compatibility: Supports American-style cable joints, ensuring seamless integration with existing North American power distribution infrastructure.

Deyan Electric operates under a philosophy of "surviving by quality and developing by innovation," ensuring that every product delivers consistent, reliable performance in the field.

Why Choose Deyan Electric

As a professional China manufacturer with integrated R&D, production, and service capabilities, Deyan Electric offers distinct advantages for cable distribution infrastructure projects:

1. Manufacturing Excellence – Based in Yueqing, Zhejiang Province—the renowned hub of China's electrical industry—Deyan Electric combines advanced manufacturing processes with stringent quality control.

2. Industry Expertise – Specializing in medium-voltage cable distribution equipment, the company has accumulated years of experience serving utility companies, industrial clients, and renewable energy developers worldwide.

3. Customization Support – Deyan Electric offers tailored solutions including specific voltage ratings, cable joint types, and accessory configurations to match unique project demands.

4. Global Certifications – Products are tested and certified to meet international standards, ensuring seamless integration into diverse power networks across North America, Europe, and Asia.

5. Comprehensive After-Sales Service – From technical consultation to installation guidance and warranty support, Deyan Electric provides end-to-end service to ensure customer satisfaction.

Frequently Asked Questions

Q: What are the primary applications of this American style cable distribution equipment junction box?

A: The American Style Cable Distribution Equipment Junction Box is primarily used for cable termination, branching, and distribution in medium-voltage utility grids, industrial facilities, commercial buildings, renewable energy plants (wind and solar), and infrastructure projects such as tunnels and airports. Its single-direction door and horizontal busbar design make it ideal for both indoor and outdoor installations.

Q: How does the 200A branch circuit support hot-swapping?

A: The 200A branch circuit utilizes a plug-in connection design that allows the cable joint to be inserted or removed under load without interrupting the main power supply. This feature enables maintenance, reconfiguration, or expansion of branch circuits while the system remains operational, significantly reducing downtime and improving service continuity.

Q: What environmental conditions can this junction box withstand?

A: The galvanized steel enclosure with a corrosion-resistant finish ensures protection against high humidity, salt spray, rain, snow, and temperature extremes. The fully sealed design provides IP67-rated ingress protection (dust-tight and water-resistant), making it suitable for coastal areas, industrial zones, and outdoor substations.

Q: Does Deyan Electric provide customization for specific voltage or current ratings?

A: Yes, Deyan Electric offers customization services to meet specific project requirements, including different rated voltages (up to 25kV), current capacities, cable joint types (American-style, European-style, or domestic), and optional accessories such as lightning arresters or fault indicators. Contact our technical team for detailed consultation.

Q: What is the typical service life of this junction box, and is maintenance required?

A: The maintenance-free design and robust construction provide a typical service life of 5-10 years under normal operating conditions. No routine maintenance is required due to the sealed enclosure and high-quality insulation materials. Regular visual inspections are recommended to ensure external integrity, but internal components are designed for long-term reliability.
